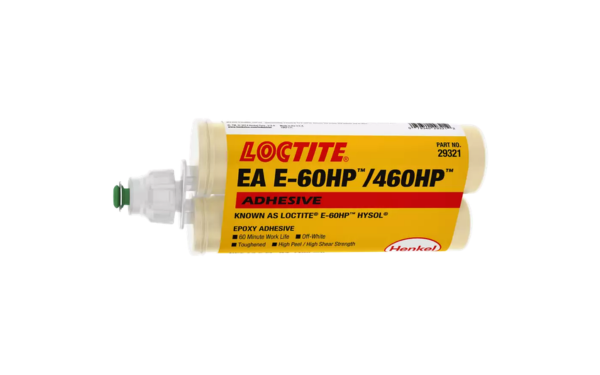

LOCTITE E-60HP
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Extended 60-Minute Working Life
- Toughened Structural Epoxy Bonding
- Electrical-Insulating Cured Bondline
Product Description
LOCTITE EA E-60HP is a two-part, toughened structural epoxy adhesive with medium viscosity, extended working life and room-temperature cure. The resin and hardener mix 2:1 by volume and provide a 60-minute working life at 23 deg C, supporting assembly adjustment before cure. After a five-day cure at 23 deg C, the adhesive develops high lap-shear strength on prepared metal substrates together with electrical-insulating and mechanical properties. It is intended for high-performance structural bonding across supported engineering substrates where a longer processing window is more important than rapid fixture.
Key features
- Extended work life: Provides a 60-minute working life at 23 deg C for assembly adjustment before cure.
- Toughened room-temperature cure: Two-part medium-viscosity epoxy cures at room temperature to a tough off-white bondline.
- Steel and Aluminum Bond Strength: Typical lap shear strength is 30 N/mm^2 under ISO 4587 on grit-blasted mild steel and acid-etched, abraded aluminum after a five-day cure at 23 deg C.
Applications
Structural bonding applications requiring high performance and extended work life across supported engineering substrates.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Additional Information
As-supplied properties
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Mix ratio by volume | 2:1 | Resin:hardener | |
| Mix ratio by weight | 100:50 | Resin:hardener | |
| Resin viscosity | 67,500 | mPa s | Brookfield RVT; spindle 7; 20 rpm; 25 deg C |
| Hardener viscosity | 7,000 | mPa s | Brookfield RVT; spindle 6; 50 rpm; 25 deg C |
| Working life | 60 | min | 23 deg C |
| Tack-free time | 120 | min | 23 deg C |
Final-state properties
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Glass transition temperature | 70 | deg C | TMA; ISO 11359-2; cured 5 days at 23 deg C |
| Hardness | 80 | Shore D | ISO 868; cured 5 days at 23 deg C |
| Elongation | 9 | % | ISO 527-3; cured 5 days at 23 deg C |
| Tensile strength | 35 | N/mm^2 | ISO 527-2; cured 5 days at 23 deg C |
| Dielectric breakdown strength | 13 | kV/mm | IEC 60243-1; cured 5 days at 23 deg C |
| Lap shear strength | 30 | N/mm^2 | Grit-blasted mild steel; cured 5 days at 23 deg C |
| Lap shear strength | 30 | N/mm^2 | Acid-etched and abraded aluminum; cured 5 days at 23 deg C |
