3M EMI Absorber & Magnetic Shielding Material AB3000 Series

Main features

Broadband 1-10 GHz EMI Absorption
Configurable Thickness & Adhesive Options
Die-Cuttable Sheet Format

Product Description

3M™ EMI Absorber AB3000 Series is a magnetic EMI absorber sheet for near-field applications from 1 GHz to 10 GHz. The series combines a carrier resin and magnetic fillers with optional acrylic pressure-sensitive adhesive and is available in 0.100, 0.300 and 0.500 mm magnetic-layer thicknesses. AB3000 is supplied in 340 x 340 mm sheets on a removable liner for handling and die-cutting. 3M positions the series for broadband EMI absorption, while its frequency-dependent permeability, material thickness, XY area, location and orientation are key variables to evaluate in the end-use assembly.

Key features

Broadband EMI absorption: Near-field EMI absorber performance is published from 1 GHz to 10 GHz.
Multiple thickness and adhesive configurations: 0.100, 0.300 and 0.500 mm magnetic-layer options are available with adhesive and in -WO configurations without adhesive.
Sheet handling and conversion: Supplied in 340 x 340 mm sheets on a removable liner for handling and die-cutting.

Applications

Potential application areas include mobile phones, computers, tablets, displays, camera modules, antenna grounds, test and measurement equipment, sensors, radar and avionics equipment.

Packaging

Please select Width and Version.

TDS, SDS & Technical Documents

3M-AB3000

English (Technical Data Sheet (TDS))

Technical Specifications

General Properties

Adhesive Layer

Acrylic Non-Conductive Adhesive

Product Type

Soft Magnetic Composite

Electrical Properties

Electrical Resistivity

2 x 10^4 Ohm

Thermal Properties

Temperature Range

-25 to 90 °C

Additional Information

EMI management | Magnetic absorber sheet

3M™ EMI Absorber AB3000 Series

3M EMI Absorber AB3000 Series is a magnetic composite sheet for near-field electromagnetic interference management from 1 GHz to 10 GHz. The series combines magnetic fillers in a carrier resin with optional acrylic non-conductive pressure-sensitive adhesive, providing multiple thickness and attachment configurations for evaluation in compact electronic, radar and avionics assemblies.

1-10 GHz near-field range 0.100-0.500 mm magnetic layers With or without adhesive 340 x 340 mm sheet Soft magnetic composite

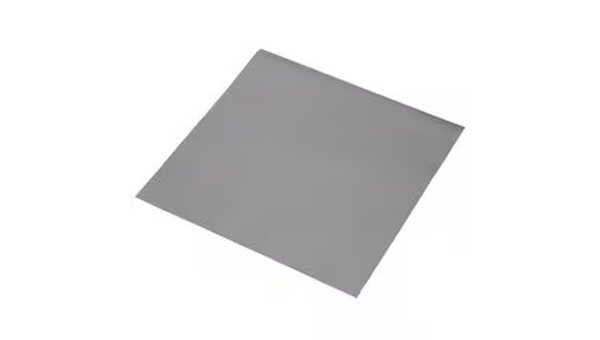

AB3000 Series magnetic absorber sheet or representative converted part.

Product construction and as-supplied properties

Magnetic layer options

0.100 / 0.300 / 0.500 mm

Three published magnetic-layer thicknesses; values exclude protective film and carry a stated +/-10% tolerance.

Adhesive configuration

With PSA or -WO

The series is offered with optional acrylic non-conductive adhesive; -WO designates variants without adhesive.

Property	Value	Unit	Method / condition
Magnetic type	Soft magnetic composite	-	Representative series construction.
Adhesive type	Acrylic non-conductive adhesive	-	Optional on adhesive-backed variants.
Sheet format	340 x 340	mm	Published AB3000 Series sheet format.
Magnetic layer thickness	0.100 / 0.300 / 0.500	mm	Variant-dependent; excludes protective film; stated tolerance +/-10%.
Release liner	Removable liner	-	Supplied for handling and die-cutting.

Design evaluation

Evaluation and application setup

AB3000 effectiveness depends on frequency, material thickness, XY area, placement and orientation relative to the electromagnetic field. Establish a baseline in the intended assembly before reducing absorber thickness, shape or coverage.

Baseline evaluation: Start with the greatest practical thickness and XY area, and evaluate multiple locations or multiple parts to establish the potential performance level in the end-use assembly.

Optimize after baseline: Once baseline performance is established, reduce or change material thickness, XY shape and location to identify the minimum material configuration that meets the application requirement.

Conversion and placement: AB3000 is supplied on a removable liner for handling and die-cutting. Select the adhesive-backed or -WO configuration needed for the planned assembly and validate placement in the final geometry.

Storage and handling

Shelf life is 12 months from the date of manufacture when AB3000 Series is kept in its original packaging below 25 deg C (77 deg F) and below 60% relative humidity.

Typical technical performance

Temperature range

-25 to 90 deg C

Representative range based on polymer-binder environmental characteristics; verify performance in the end-use configuration.

Typical permeability at 1 MHz

Representative typical value; permeability results can vary with test method and equipment.

Property	Value	Unit	Method / condition
Electrical resistivity	2 x 10^4	ohm m	Typical; ASTM D257 type test method.
Typical permeability at 1 MHz	30	-	Typical; results can vary with test method and/or equipment.
Temperature range	-25 to 90	deg C	Typical; based on general environmental performance of the polymer binder resin type. Verify in the end-use configuration.
EMI absorber performance range	1 to 10	GHz	Near-field application range published for the AB3000 Series.
Target range for peak performance	3 to 7	GHz	Current 3M product positioning; end-use response remains application-dependent.
Targeted permeability range for EM-field coupling	300 kHz to 15 MHz	-	Published targeted permeability range; frequency-dependent behavior should be evaluated in the intended application.

AB3000 Series variants

The AB3000 Series uses three magnetic-layer thicknesses, each available in adhesive-backed and -WO configurations.

Variant	Magnetic layer thickness	Adhesive configuration	Selection note
AB3010	0.100 mm	Acrylic non-conductive adhesive	Thinnest adhesive-backed option.
AB3030	0.300 mm	Acrylic non-conductive adhesive	Mid-thickness adhesive-backed option.
AB3050	0.500 mm	Acrylic non-conductive adhesive	Thickest adhesive-backed option.
AB3010-WO	0.100 mm	Without adhesive	Thinnest -WO option.
AB3030-WO	0.300 mm	Without adhesive	Mid-thickness -WO option.
AB3050-WO	0.500 mm	Without adhesive	Thickest -WO option.

Magnetic-layer thickness excludes protective film and carries a stated +/-10% tolerance. -WO means without adhesive. Published technical data are representative or typical and are not product specifications.

Performance evidence

AB3000 performance data are frequency- and configuration-dependent. The supplier test methods below provide context for evaluating permeability, power loss and transmission attenuation without converting typical graph results into guaranteed specifications.

Permeability across frequency

The published permeability data show both real and imaginary permeability changing with frequency. AB3000 selection should therefore be evaluated against the frequency region of the actual EMI source rather than treating permeability as a constant material value.

Short coax measurement using Keysight magnetic test fixture 16454A from 1 to 1000 MHz and 7-mm coax from 0.1 to 18 GHz per ASTM D5568-01.

Power loss by absorber thickness

Modified IEC 62333-2 testing presents separate power-loss curves for AB3010, AB3030 and AB3050. The response changes with both thickness and frequency, supporting thickness as a design variable during end-use evaluation rather than a universal grade ranking.

Modified IEC 62333-2. Qualitative interpretation only; no exact values reconstructed from the supplier graph.

Transmission attenuation power ratio

Rtp testing presents separate frequency-dependent curves for AB3010, AB3030 and AB3050. The results reinforce that thickness should be assessed in the intended frequency region and assembly geometry.

IEC 62333-2 section 4.3; supplier test samples used 100 x 75 mm lateral dimensions. Qualitative interpretation only.

Evaluation contexts

Application areas

3M lists the following potential application areas for AB3000 Series. Final thickness, placement, area and orientation should be validated in the end-use assembly.

Mobile, computing and display electronics

Potential application areas include mobile phones, computers, tablets and displays where near-field EMI absorber placement can be evaluated within the available assembly geometry.

Camera, sensor and test systems

3M identifies camera modules, antenna grounds, test and measurement equipment and sensors as potential AB3000 application contexts.

Radar and avionics equipment

Radar and avionics equipment are listed as potential application areas, with final material configuration dependent on the target frequency and physical placement.

Next steps

Evaluate AB3000 for your EMI design

Contact Krayden to discuss AB3000 thickness and adhesive configurations against your target frequency, available XY area and placement constraints. Share the assembly geometry and EMI issue being evaluated to narrow practical starting variants for end-use testing.
